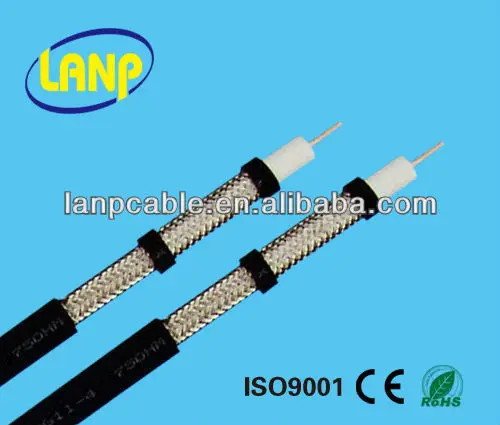

Competitive factory price RG6 RG11 RG59 RG58 coaxial cable 50ohm

FOB Reference Price:Get Latest Price
$5.00 - $9.00 / Roll | 100 Roll/Rolls 50ohm Competitive factory price CCS coaxial cable (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LANP
Model Number:
COAXIAL
Number of Conductors:
1
Type:
Coaxial,High Voltage, Coaxial
Conductor:
Copper CCA CCS
Insulation Material:
PVC
Supply Ability
Supply Ability:
2000000 Meter/Meters per Month 50ohm Competitive factory price CCS coaxial cable
Packaging & Delivery
Packaging Details
RG6 RG11 RG59 RG58 Coaxial Cable

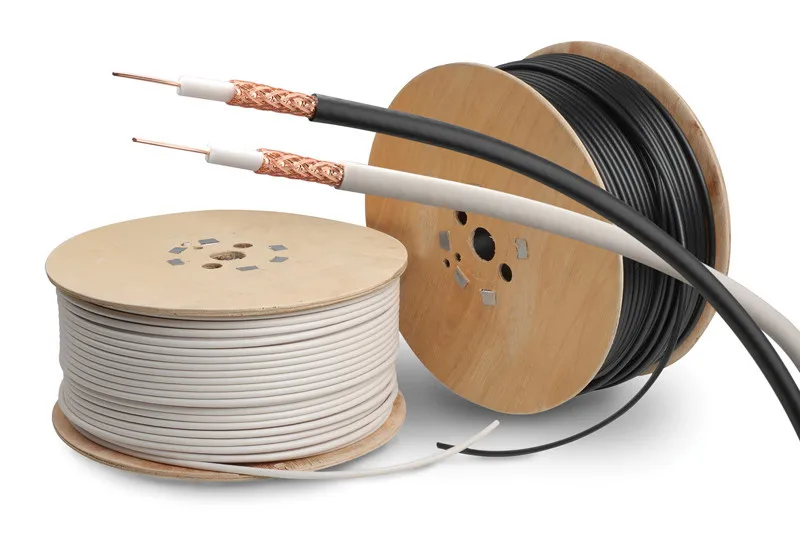

Packaging Detail: High Quality RG6 Cable Packing for coaxial cable 305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel 100m/color box
Port
SHENZHEN

50ohm Competitive factory price CCS coaxial cable







Specifications



coaxial communication cable
1.SCCS/7*0.102/PTFE/2.59/SC/3.00/PTFE/3.58
2.SC/7*0.102/FEP/1.6/SCCS/2.5/FEP/3.00



Coaxial communication RG cable

RG RG MIL-C-17 Coaxial Cable









RG-Type

178













Structure











1

Inner conductor

Ømm

StCu-silverplated

7×0.102

2

Dielectric

Ømm

PTFE

0.86

3

Braid conductor

Ømm

Cu-silverplated

1.30

4

Jacket

Ømm

FEP

1.83



Electrical Characteristics

Capacitance (pF/m)

96.45

Impedance (ohm)

50

Velocity (%)

70

Bending radius (mm)

10



Max.oper. voltage (VMS)

1000



Max.oper. frequency (MHz)

3000



Operating Temp. ()

-55 to 200



() Attenuation (Typical) (dB/m)

Frequency











100 MHz

0.453

400 MHz

0.912

1000 MHz

1.457

3000 MHz

2.572













Application











,,,,,.GHz.

Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.







Tinned copper

-

Cu-silverplated

- Silverplated Copper

Bare copper

-

StCu-silverplated

- Silverplated Copper Clad Steel

PTFE

- Polytetrafluoroethylene

StCu

- Copper Clad Steel

Solid PE

- Polyethylene

FPE

- Physical foam polyethylene

FEP

- Fluorinated Ethylene Propylene
